[Output]
CAN, 16bit analog, Alarm, RS-485, Modbus
[Software LINKSHIP]
Smart configuration and logging / Prevents unintentional operation
[USB Type-C]
Standard equipment, for data logging, setting
[Customization]
Built in box, multi-CH, and function changes, etc
|
48x96 size |
24x48 size |
24x48 Low-cost |
 |
 |
 |

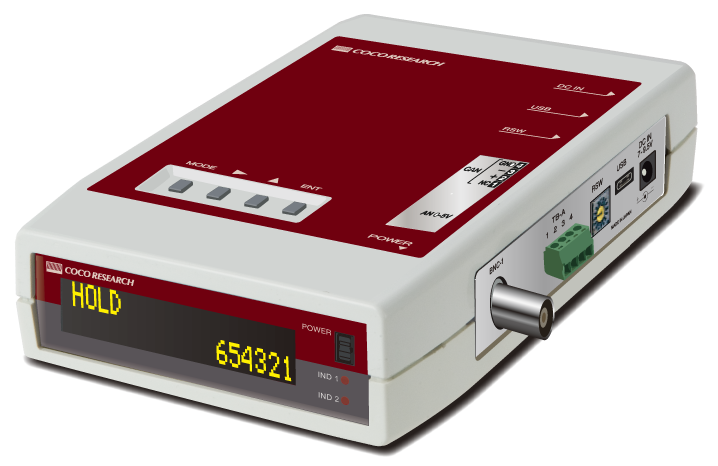

| CAN to analog Converters |
Converts CAN to voltage signals, outputs and displays |
Soon |
CAN-24 |
CANL-24 |
| Thermistor input thermometers |
High conversion accuracy by original calculation method
|
Soon |
HT-24T |
HTL-24T |
| RTD Resistance input |
With Pt100 RTD, resistance value check function |
HT-48R |
HT-24R |
HTL-24R |
| Thermocouple input |
Thermocouple types K, J, R, E, T, B, N, S |
HT-48 |
HT-24 |
HTL-24 |
| DC Current input Ammeters |
Input range ±10 A to ±100 µA, shunt resistance 40 mΩ, |
PSA-48 |
PSA-24 |
PSAL-24 |
| DC Voltage input Voltmeters |
Input range ±70V to ±10mV, oversampling 250kHz |
PSV-48 |
PSV-24 |
PSVL-24 |
| Resistance/Potentiometer input |
For displacement sensors, resistance output sensors, etc. |
RR-48 |
RR-24 |
RRL-24 |
| Speedmeter/Counters [Switchable] |
Freq. Pulse input, High accuracy and response with PeriomaticTM |
SPD-48 |
SPD-24 |
SPDL-24 |
| Torque meters/Freq. deviation meters |
For torque or flex fuel sensors with deviation frequency signal output |
TQ-48 |
TQ-24 |
TQL-24 |
