EX series　Digital panel meters / Signal converters / Alarm indicators

　NEW　

Added an analog 2-output option　[EX48] E.g.: 0-10V and 4-20mA outputs, etc.

　NEW　

Added Ethernet (LAN) option　[EX48]

EX48 series 48x96 mm size

Output update 0.1ms/1ms *varies by model

EX24 series 24x48 mm size

Output update 0.1ms/1ms/2ms *varies by model
2401 type
Front USB

　

2411 type
Front waterproof, Rear USB

　

2431 type
DIN rail mounting

　

2451 type
DIN rail mounting, Display-less

EXL24 series 24x48 mm size

Output update 40ms　Low-cost ver.
2401 type
Front USB

　

2411 type
Front waterproof, Rear USB

　

2431 type
DIN rail mounting

　

2451 type
DIN rail mounting, Display-less

EX48 series
48x96

EX24 series
24x48

EXL24 series
24x48 Low-cost version

Load cell Meters　NEW

For strain, pressure, load, weight, acceleration, etc. CAN output

Convert voltage signals such as load cells into CAN, analog (voltage/current), and alarm signals


Strain gauge	Load cell	Pressure sensor	Accelerometer

Speedmeter/Counters [Switchable]

High accuracy and response with Periomatic^TM. Pulse signal input

Displays/outputs speed and accumulated values using the sensor's frequency pulse signal.


Gear Sensors	Flow Sensors	Rotary Encoders	Linear Encoders

Torque meters/ Freq. deviation meters

For torque / flex fuel sensors with deviation freq. signal output

Center / Set rated frequency and rated torque to display measured values


Torque Sensors	Flex Fuel Sensors

Thermistor Input (Temperature)

Under preparation

High conversion accuracy with unique calculation method

2 constant logarithmic approximation operation E.g.)Within ±0.05%rdg

NTC thermistors

TC Input (Temperature)

For thermocouple types K, J, R, E, T, B, N

Conversion of thermoelectric power generated by the temp. difference between the TC tip and the measuring instrument

RTD Input (Temperature)

For Pt100 resistance thermometer

Resistance value check function

DC current input, ammeters

Measurement ±10 A to ±100 μA

Oversampling approximately 250kHz, shunt resistance 40mΩ(some models)


Battery	Solenoid	Motor	Clamp-type sensor

DC voltage input, voltmeters

Measurement ±70V to ±10mV

Oversampling approximately 250kHz


Pressure Sensors	Displacement Sensors	ECU	Level Sensors

Resistor/Potentiometer Input

For rresistance output sensors, and potentiometers, etc.

Set the resistance range to 150Ω, 1.5kΩ, 10kΩ, or 40kΩ


Potentiometers	Internal resistance

CAN to analog Converters

Under preparation

Converts CAN to analog signals, outputs and displays

No CAN analyzer required


Automobiles	Construction machinery	Agricultural machinery	Office equipment, etc.

Outputs 0.1-40ms　*varies by model

CAN [option]

3-wire system greatly reduces wiring compared to BCD
Powerful error detection system for improved noise immunity and safety

SAE J1939 (DLC 8 bytes or less) Customization
Please contact us for other customizations.

RS-485 [option]

Ethernet (LAN)　[Option for EX48] 　NEW　

USB Type-C　[Standard equipment] Data Logging and Settings

16bit analog output　[Option]
Resolution 50,000 or more／Full scale and zero scale settings, output zero adjustment

Analog 2-output option　[Option for EX48] 　NEW　
Example: 0-10V and 4-20mA outputs, etc.

Alarm output　[Option] 1 to 4points

Smart configuration and logging

Setting management, report printing, and CSV logging with dedicated software LINKSHIP [free of charge]

　LINKSHIP Page >　

CSV logging

Time-specific logging available. Custom logger software is available.

Compare set value lists

Multiple lists of set values can be compared and collated.

Save and copy of set

Prevents errors in handwriting and typing, and reduces management time and costs.

Prevention of misoperation

Settings and confirmations can be made on the PC screen, preventing misoperation of the main unit's buttons.

Reduce man-hours

Even multiple units can be easily configured by simply writing the configuration data.

USB Type-C connector standard

Front USB：configuration, logging, power supply [EX/EXL24]

Configuration*, logging*, and power supply also available on rear terminal block.
*CAN or RS-485 option required
*The Load Cell meter ST(L) must be powered via the rear terminal block, not the USB connector.

Rear USB：configuration, logging [EX48]

Can also be configured with front buttons (standard) or rear terminal block
*(requires CAN or RS-485 option)

Ethernet (LAN) option is also available

Setup unit without LINKSHIP or PC required:
［sold separately］

>PL-5A Product Page

*Setting only / data logging and power supply not available.

Easy wiring and installation　For on-site usability

Detachable Plug Connectors
Simply connect the wires to the connector and plug it in by hand.

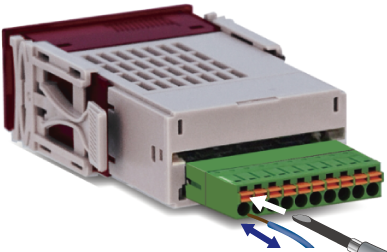

Spring lock type [Standard]

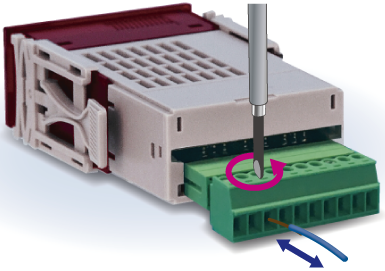

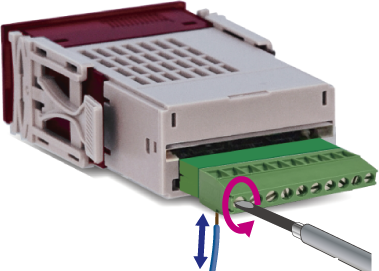

M2 screw type [Option]

Fixed Connector
Non-detachable [Customize]

Mounting hooks
Fixing the main body

*Not included in 2431 and 2451 types

Front operation. Setting and measuring
Key lock: Prevents unintentional operation by field workers.

(A)Operation indicator LED
(B)Front sheet button
- [Program mode] Mode, Digit selection, Numeric setting, Enter
- [Measurement mode] Span shift, Zero shift
- Key lock, etc.

Blue/pink type [Option]
*Designs are subject to change.

Mounting hooks
Tool-free mounting of the main unit to the panel

Various ways to use

Carry and measure

Carry PC, instrument, and cable, and measure with USB power supply. Storage case BXS-1 is also available.

>BXS-1 Overview

Built in panel

24x48 size contributes to downsizing

>SPD-24 Dimensions

DIN rail mounting

One-touch fixture and display-less type


*BXF-DN2* DIN rail attachment[sold separately]	*SPD-2451* Display-less type	*SPD-2431* With display type
>BXF-DN2 page

Affordable and easy-to-use 1-channel type [Price in Japan]

EXL24	14,100 yen and up	*tax not included
EX24	28,100 yen and up	*tax not included
EX48	35,800 yen and up	*tax not included

*Prices vary by model. / *Prices as of February 2024.

Customization　［Minimum of 1 unit: Please consult with us］

　>View more　

■Select and combine only what you need
■Convenient, easy, and low cost
■Functional change : power supply, output voltage, communication specifications, etc.
■Calibration as an embedded product is available
■Calibration documents and traceability charts can be issued
