While inverters are widely used for motor control as energy-saving measures, they are also sources of electrical noise.
Consequently, inquiries regarding noise countermeasures in measurement applications have been increasing.
In rotational speed and angle measurement, many encoders feature line driver signal outputs, but they often cannot accommodate EV or high-speed motors.

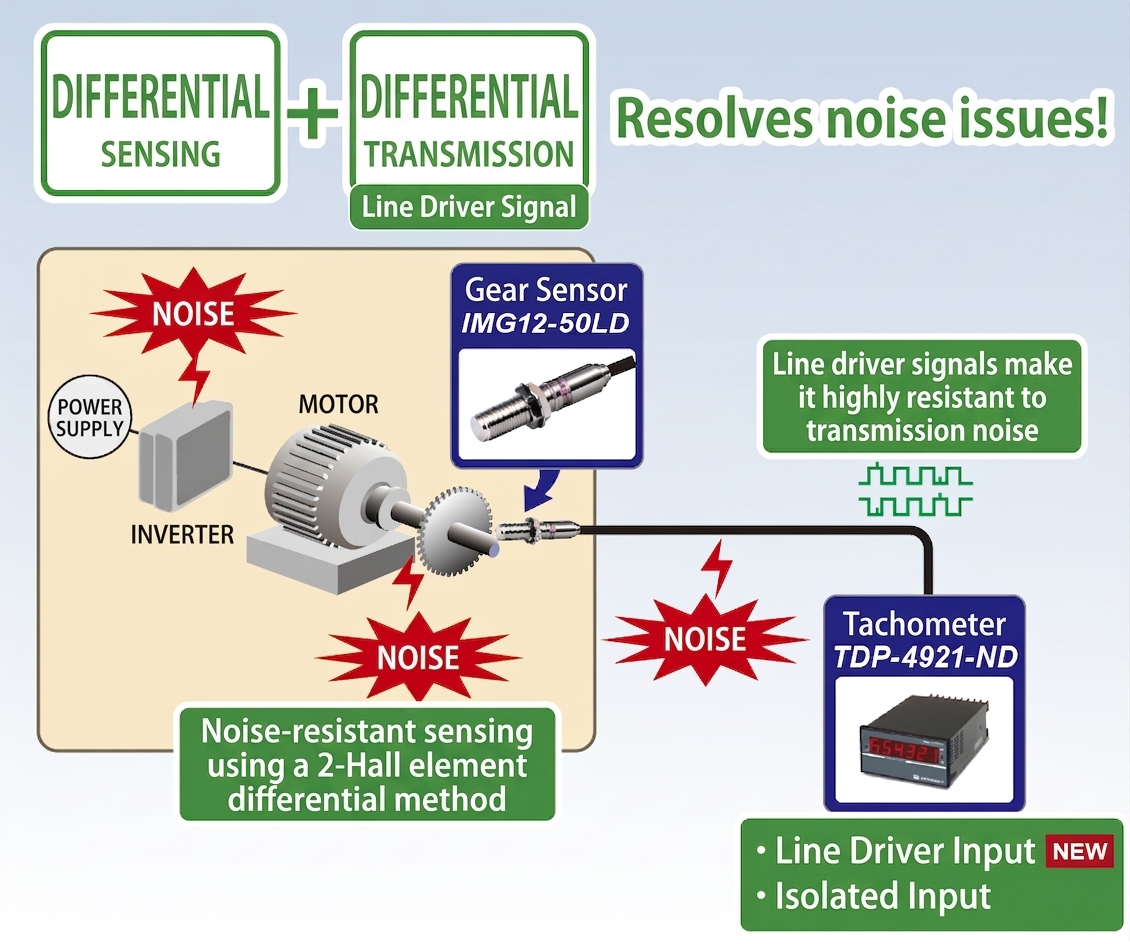

Here, we introduce gear sensors with line driver outputs that adopt differential methods for both sensing and transmission, making them less susceptible to noise.
Measurement from 0 Hz
Detectable from 0 Hz; precisely measures right from the start of rotation through to stopping.
Stable Detection with Reduced Jitter
The sensor part utilizes a 2-Hall element differential method. Unaffected by ambient magnetic fields, it ensures stable detection with reduced jitter.
Reliable Long-Distance Transmission
Line driver output is resistant to transmission noise, allowing safe and reliable use even over long transmission distances.
Rotational Speed Measurement
Pair with the TDP-4921-ND-□□ (line driver input & isolated input support) for even greater noise immunity during measurement.
Magnetic Gear Speed Sensors
IMG12-50LD
IMG16-50LD
Line Driver Output Semi-Open Collector Output Differential (Balanced) CMOS Logic Output Wide Power Supply Range Conical Press
Adopts a 2-Hall element differential method to eliminate magnetic field noise at the sensing part, providing a stable output with suppressed jitter.
The LD type with line driver output also eliminates the effects of transmission noise, making it suitable for long-distance wiring.
The sensor detection surface features a completely sealed single-body metal case with IP67 rating, supporting environments exposed to water or oil.
Measurable Frequency Range: 0 Hz to 20 kHz | Operating Temperature Range: -20°C to 105°C
Common Features
■ Isolated Input / Supports Line Driver Signals
■ Compatible with Free LINKSHIP Measurement Management Software
TDP-4921-ND-□□
Universal Tachometer
Line Driver Input RS-485 RS-232C BCD Output Analog Output Alarm Output LINKSHIP Compatible
A rotational tachometer connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 0.0006 Hz to 4 MHz (Single-phase) / 0.0006 Hz to 1 MHz (A/B phase)
Analog Output (Optional) Resolution: 16-bit
Output Update: 0.5 ms
CNT-4921-ND-□□
Pulse Totalizing (Reversible) Counter
Line Driver Input RS-485 RS-232C BCD Output Analog Output Alarm Output LINKSHIP Compatible
A reversible measurement counter connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 0 to 4 MHz (Single-phase) / 0 to 1 MHz (A/B phase)
Analog Output (Optional) Resolution: 16-bit
Output Update: 0.5 ms
SPD-4801D-□□
Speed / Totalizing Meter [Switchable]
CAN RS-485 Modbus USB Analog Output Alarm Output LINKSHIP Compatible
A switchable speed/totalizing meter connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 600 μHz to 1 MHz
Adjustable trigger level, hysteresis, pull-up, and low-pass filter settings.
Analog Output (Optional) 16-bit resolution / 0.1 ms output update
CAN Output (Optional) 1 ms output update
SPD-2401D-□□
Speed / Totalizing Meter [Switchable]
CAN RS-485 Modbus USB Analog Output Alarm Output LINKSHIP Compatible
A switchable speed/totalizing meter connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 600 μHz to 1 MHz
Adjustable trigger level, hysteresis, pull-up, and low-pass filter settings.
Analog Output (Optional) 16-bit resolution / 0.1 ms output update
CAN Output (Optional) 1 ms output update
SPDL-2401D-□□
Economy Model
CAN RS-485 Modbus USB Analog Output Alarm Output LINKSHIP Compatible
A switchable speed/totalizing meter connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 600 μHz to 1 MHz
Adjustable trigger level, hysteresis, pull-up, and low-pass filter settings.
Analog Output (Optional) 16-bit resolution / 40 ms output update
CAN Output (Optional) 40 ms output update
SPD-HD
Pocketable
Speed / Totalizing Meter [Switchable]
CAN RS-485 Modbus Analog Output Alarm Output Zero Shift Span Shift Totalizing Stop/Start LINKSHIP Compatible
A switchable speed/totalizing meter connectable to various sensors.
Supports isolated inputs and line driver signals.
Input: 600 μHz to 1 MHz
Adjustable trigger level, hysteresis, pull-up, and low-pass filter settings.
Analog Output (Optional) 16-bit resolution / 40 ms output update
CAN Output (Optional) 40 ms output update
2-way Power Supply: Alkaline batteries / AC adapter
Selectable connectors including proprietary retractable BNC and terminal blocks
CPI Series
Pulse Isolators
DIN Rail Mounting Type High-Speed Pulse Isolator BNC Connector Input/Output
Pulse isolators supporting inputs up to 300 kHz.
Ideal for noise reduction from measurement lines and signal branching inside control panels.
Features filter circuits (low-pass filter) and signal trigger level adjustment capabilities.
- CAN Output
- 16-bit Analog (Voltage/Current) Output / Dual Outputs
- USB-C: Configuration & Data Logging
- Alarm Output / RS-485
- Free Configuration Management Software: Report Printing & Data Logging
- Ethernet (LAN) [EX48]
