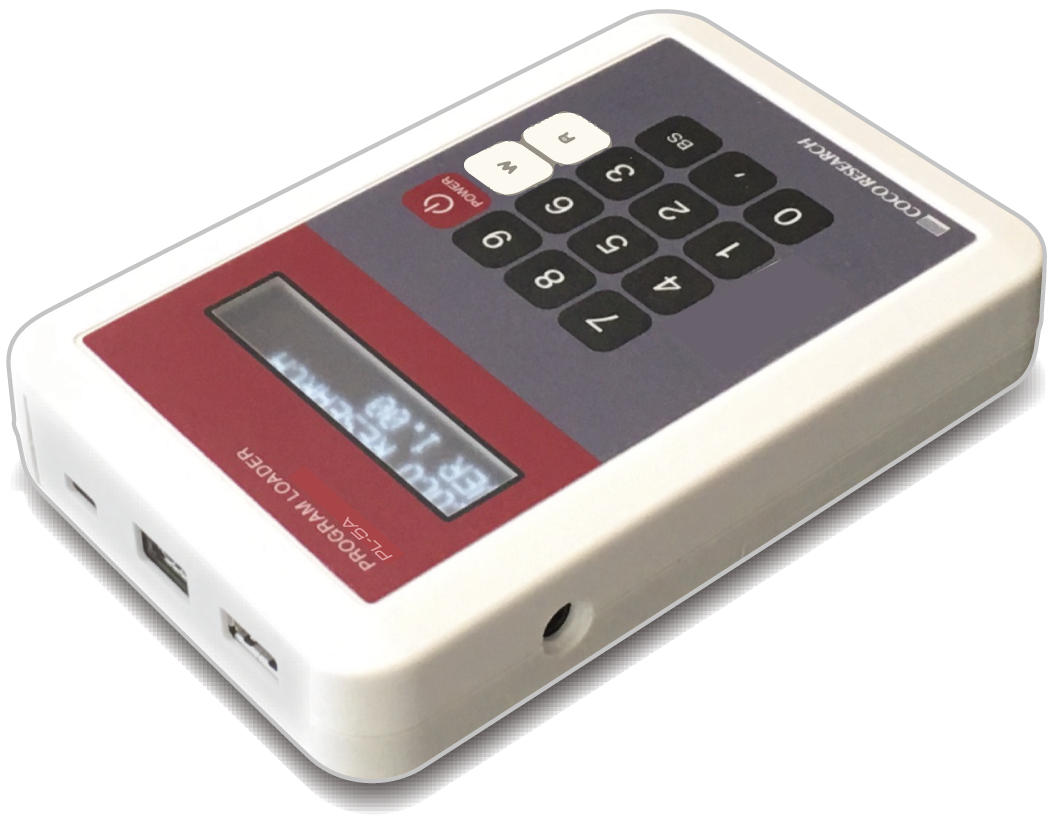

The PL-5A is a program loader for configuration management of the panel meter EX24 / EXL24 / EX48 series.
It is a handheld configurator that allows you to read, reference, write, and change configuration settings without requiring a computer, LINKSHIP measurement management software, or network lines.
| No PC Required |
| No Software Required |
| No Internet Required |
Communicates with the target device using the included USB cable.
[EX side: Type-C / PL-5A side: Type-A]
*Power is not supplied to the panel meter from this device. Please supply power to the measurement instrument separately.

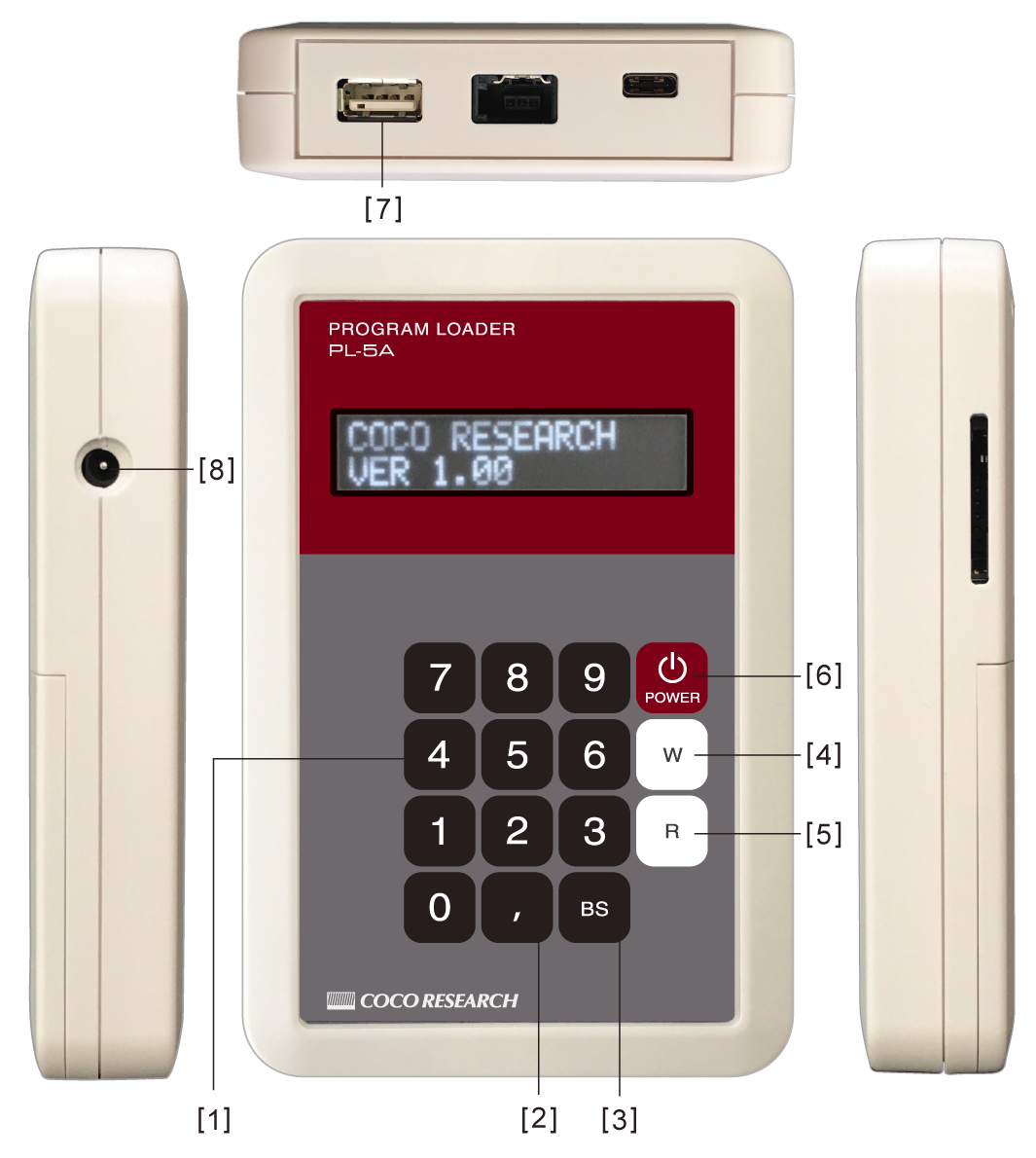

[1] Numeric Keys (0-9)
Inputs setting item numbers and parameter values.
[2] Comma Key (,)
For entering commas. Decimal point (.) input is not supported.
[3] BS (Backspace) Key
Cancels entries for configuration items or parameter values on the screen.
[4] W (Write) Key
Writes settings to the target device.
[5] R (Read) Key
Reads settings from the target device.
[6] POWER Key
Power ON/OFF (Press and hold for 3 seconds).
[7] USB Type-A Connector
For connecting to the device to be configured.
[8] DC Input Terminal
For connecting the AC adapter (EIAJ#3) DC 7.5V or 9V.
*Operating time varies depending on the usage environment.
*Power cannot be supplied from this device to the measurement instrument. Please prepare a separate power supply for the measurement instrument.

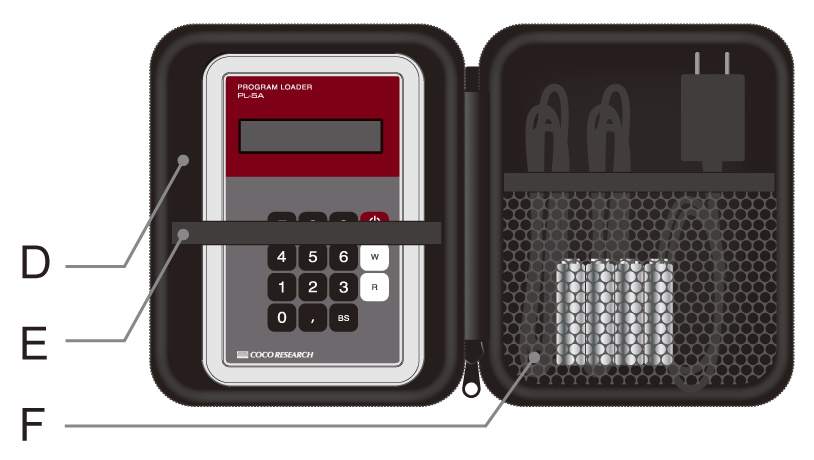

Interior
D: Opens wide for a clear view of contents.
E: Elastic band to secure the main unit.
F: Storage mesh net.

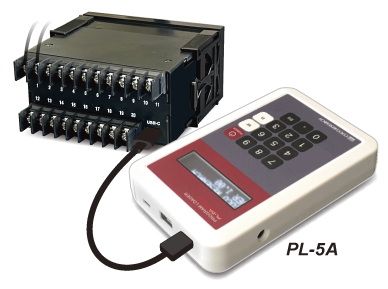

[Usage Example]
| Product Name | Program Loader (Program Configurator) |
| Model | PL-5A |
| USB Communication Section | |
| Communication Specs | USB 2.0 (Serial port communication via USB Virtual COM, 230.4 kbps) |
| Communication Function |
Communicates as a host device replacing a PC. |
| General Specifications | |
| Operating Temp/Humidity | 0°C to +40°C / 35 to 85% RH (No condensation) |
| Storage Temp Range | -10°C to +60°C |
| Power Supply | AC Adapter: DC +7.5V or +9.0V EIAJ#3 Batteries: 4 x AA alkaline batteries |
| Power Consumption | 1W or less |
| Battery Life | 12 hours or more when using AA alkaline batteries | Weight | 210g (Main unit only, excluding AC adapter and batteries) | Dimensions | 95W x 146H x 27D mm (Including projections) | Included Accessories | AC Adapter / USB Cable / Instruction Manual / Carrying Case |
| Price: 52,800 JPY [Excluding Tax] | |
