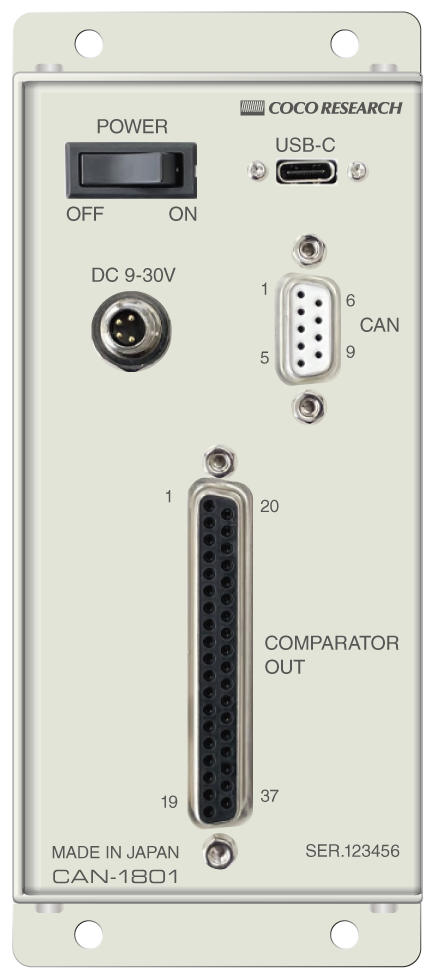

CAN Data Comparison Output Device CAN-1801

Option/ Models
Dimesions
DXF data
Manual Downloads

CAN signal input 15 CHs *Please consult us for other number of CHs than 15.

Specify for each CH
CAN receive ID
CAN receive FRAME
FORMAT
Data type
Data byte block
Bit position
Receivable data type　One bit data is also available.
Short-precision floating-point type 32-bit
Double-precision floating-point type 64-bit
1bit data
16bit unsigned integer type
16bit signed integer type
32bit unsigned integer type
32bit signed integer type
8bit unsigned integer type
8bit signed integer type

Compare and judge each CH

Comparison conditions can also be set for each CH.
15 CHs can be processed with also one CAN-ID.

Contact output 15 CHs (ON/OFF output of comparison result)

Application image 　15CH data can be processed with either 1 ID or 15 IDs.

Input 15CH

CAN Data 15CH


Automobile

Construction machinery


Agricultural equipment


Office equipment, etc.
For processing with 1 CAN-ID
Process 15CH with 1 CAN-ID
ID1
Input 1CH: 1bit data
・
・
Input 15CH: 1bit data
→
・
・
→
Output 1CH
・
・
Output 15CH
Specify bit position and byte block, and assign 15 CHs of 1-bit data to one ID
E.g. 1-bit data specification: Layout tab of message window
Start byte block bit position
7 6 5 4 3 2 1 0
0 CH 6 CH 5 CH 4     CH 3 CH 2 CH 1
1   CH 10   CH 9 CH 8   CH 7
2       CH 13   CH 12   CH 11
3             CH 15 CH 14
・
・		 ・
・
7
ID1

For processing with 15 CAN-IDs
Process 15 CHs with 15 CAN-IDs
ID1
Input 1 CH
→
Output 1 CH
・
・		 ・
・		 ・
・		 ・
・
ID15
Input 15 CH
→
Output 15 CH

Allocates 1 CH of data per 1 ID
Contact output 15CH
Comparison condition is set by CH
Comparison judgment result (ON/OFF)
CH1
CH2
CH3
CH4
CH5
・
・
CH11
CH12
CH13
CH14
CH15
**Output is NPN open collector only
Measurement and control
For trigger, etc.
Relay ON

External power supply
Voltage application
Relay
　
PLC, indicator lamp, etc.
　

CAN2.0 compatible [Input]

Receive ID, receive FRAME, FORMAT, data type, data byte block, bit position can be specified for each CH

BPS：10k, 20k, 50k, 100k, 250k, 500k, 1Mbps

FORMAT：Intel(Little Endian)/Motorola(Big Endian)

FRAME：Standard (11-bit length ID)/ Extended (29-bit length ID)

Data frame：8 bytes Receive data type and read start byte can be set

Comparator output 15CH (Comparison judgment result)

Output response time within 100ms

ON/OFF output of comparison judgment result for each CH

USB Type-C [standard] for configuration　*No power supply or data logging function

Smart configuration/logging　Configuration management, report printing, and CSV logging with dedicated software LINKSHIP (free of charge)

　> Go to LINKSHIP page　

Compare and collate configuration values


Compare and compare multiple setting value lists

Save and copy settings to PC


Prevents mistakes in handwriting and manual input, and reduces management effort and costs.

Prevents incorrect operation and setting errors.


Setup and confirmation on PC screen. Prevents operation errors of buttons on the main unit.

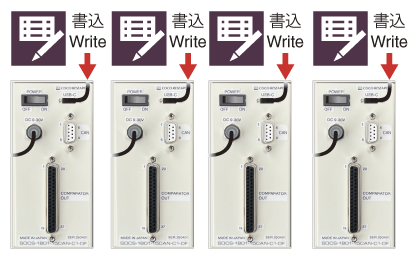

Reduces man-hours for settings


Copy the master settings and only write the setting data even for multiple units.

USB Type-C standard equipment: Configuration


Power supply voltage DC9-30V

Isolation

CAN communication ・Comparator output / Electrical isolation between power input and enclosure

Application examples

　List of example of use>　


CAN data confirmation in wind tunnel experiments: vehicles, building and civil

Specifications

Name CAN data comparison output device
Model CAN-1801-C15-DF
　
CAN communication Input section
Number of CAN bus CH 1
Number of target data 15 (Message ID and data format can be set for each data)
Communication Specifications CAN2.0B
10k, 20k, 50k, 100k, 250k, 500k, 1M bps
Format: Intel / Motorola
Frame: 11bit / 29bit
Data frame 8 bytes: set the type of received data and the start byte to read
Connector
　		 D-sub 9pin connector 1 point (No termination)
　
Comparator output section
Number of output points 15 *Comparison output one point at a time for 15 monitored data
Output signal NPN open collector output (Maximum rating: 35VDC 400mA)
Output response 100ms or less
Connector D-sub 37pin connector 1 point
　
USB communication section
Communication specification USB2.0(Serial port communication by USB virtual COM 230.4kbps)
Communication function
　		 Write/read setting values
　
General Information
Operating Temperature/Humidity Range 0°C to +40°C, 85%RH or less (non-condensing)
Power Supply Voltage DC9-30V Power Cable
Isolation CAN Communication / Comparator Output / Power Input / Housing
Weight Approx. 820g
