What are the benefits of retrofitting a test bench for CAN compatibility?

By centralizing analog signals into CAN communication, the effects of noise inherent to analog wiring can be significantly reduced, improving data reliability. Additionally, because the number of wires can be reduced, it simplifies the system configuration and enhances maintainability.

How is support for driving actuators/robots implemented?

A feedback loop is established where the vehicle's speed and rotational data are provided as high-precision CAN data, and the robot operates the accelerator and brakes based on those signals. This enables 24-hour continuous testing and standardizes testing accuracy, making it independent of individual driving skills.

How is Periomatic technology utilized in test bench retrofitting?

With COCORESEARCH's proprietary Periomatic technology, high-speed tracking with 1-pulse response is achievable from ultra-low to high-speed ranges, even during sudden acceleration or deceleration. This supports the real-time, high-precision feedback control required by driving robots.

PAGE
TOP

Modification of Vehicle Test Benches for CAN and Driving Robots

Renovate an existing test bench to support CAN and a driving robot.

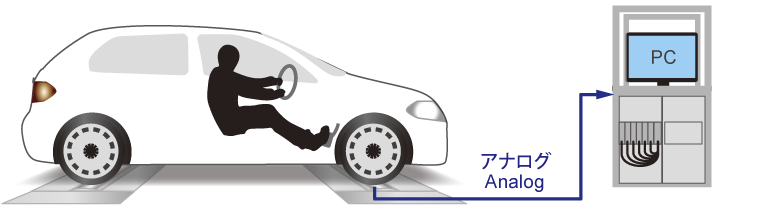

Before: Old style test bench

Vehicle information was output via analog signals (speed, temperature, etc.)
→Difficulty in noise immunity

Driving operation by a skilled driver
→Difficult to test for long hours, different skills for each driver, secure highly skilled personnel

Large number of wires
→Large budget required for replacement

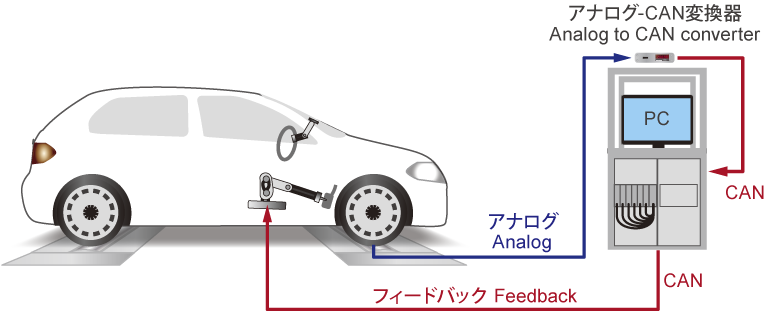

After: Example of modification

Convert vehicle information to CAN (speed, temperature, etc.)
→Improvement of noise immunity

Robot operates with signals fed back from PC
→Long-time testing is possible with less manpower, equalization of driving skills, and streamlining of testing.

Coco Research's transducers can be proposed from 50,000 yen per channel, price in Japan. Signal conversion for multiple channels is also available.
→Reduction of replacement cost is possible.

What this case study can do

Reduced wiring and noise immunity

Wiring from the test bed is changed to CAN (3-wire system) to reduce wiring and improve noise immunity.

Reduced manpower and improved reliability

No need for highly skilled operators, long-time testing is possible, and leveling of operating techniques improves test reliability and accuracy.

Low cost

Reasonable transducers reduce refurbishment costs, and operation robots reduce labor costs.

Support for Various Measurements

Various transducers available for speed, angle, position, temperature, current, voltage, resistance, torque, etc.

Measuring Instruments and Signal Converters

■Outputs measurement data via CAN

■Simultaneous CAN and analog output (16bit) available

■Measurement is possible from 0 Hz

■Alarm signal can be output when the specified rotation speed or temperature is exceeded

Selection Point

Measuring instruments and signal converters

■Fastest 1ms update, CAN output

■Unique Periomatic^TM calculation (SPD), which is strong even at ultra-low rotational speeds. High accuracy from ultra-low speed to high speed. Follows sudden changes and sudden stops.

What is Periomatic^TM?は

■Various products such as rotational speed, angle, temperature, current, voltage, resistance, torque, CAN, etc.

Products

　View All Products　

　View Speedometer List　

　View F/V converter List　

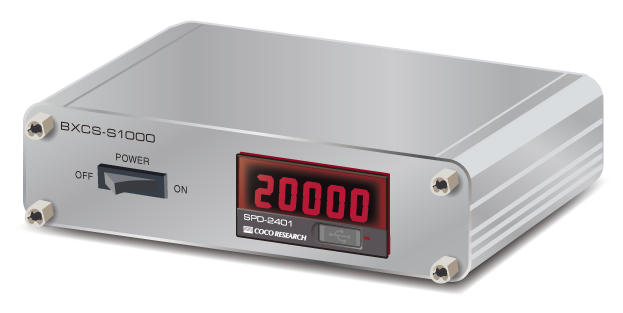

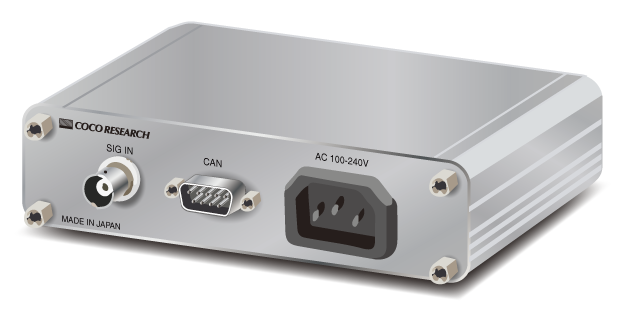

Speed/Totalizer [switchable]
48x98 size
SPD-4801

■For speedometer, frequency meter, tachometer, flowmeter, totalizer, etc.
■Simultaneous 16-bit analog (0.1 ms) and CAN (1 ms) output
■High accuracy and high speed response from ultra-low speed to high speed rotation with unique Periomatic^TM
■Trigger level, hysteresis, pull-up, and low-pass filter can be adjusted and set.
■Setting and measurement operations can be performed with the buttons on the front panel.
■Easy to set up and manage with free dedicated software LINKSHIP

Speed/Totalizer [switchable]
24x48 size
SPD-24 series

Low-priced version
SPDL-24 series

■For speedometer, frequency meter, tachometer, flowmeter, totalizer, etc.
■Simultaneous 16-bit analog (0.1 ms) and CAN (1 ms) output
　*SPDL updates for 40ms
■High accuracy and high speed response from ultra-low speed to high speed rotation with unique Periomatic^TM
■Trigger level, hysteresis, pull-up, and low-pass filter can be adjusted and set.
Versatile use including panel mounting, DIN-rail mounting, and portability ■Easy to set up and manage with free dedicated software LINKSHIP

Pocketable
Speed/Totalizer [switchable]
SPD-HD

■For speedometer, frequency meter, tachometer, flowmeter, totalizer, etc.
■Handheld type for on-site use such as shipping/performance inspection, equipment inspection, operation check, etc.
■Simultaneous 16-bit analog (0.1 ms) and CAN (1 ms) output
■2-way power supply: 4 AA batteries / Included AC adapter
■High accuracy and high speed response from ultra-low speed to high speed rotation with unique Periomatic^TM
■Trigger level, hysteresis, pull-up, and low-pass filter can be adjusted and set.
■3-way setting: main unit button / PC + software / external setting unit
■Flexible connectors such as unique retractable BNC and terminal block

Other Measurement Categories

View List >

Load Cell / Pressure / Strain	CAN Conversion
DC Current	DC Voltage
Thermocouple (Temperature)	Thermistor (Temperature)
RTD (Temperature)	Resistance
Speed / Totalizer	Frequency Deviation / Torque

- CAN Output
- 16-bit Analog (Voltage / Current) Output
- Simultaneous CAN and Analog Output Available (1ms or 40ms update)
- USB-C Standard Equipment: Configuration & Data Logging
- Alarm Output / RS-485
- Free Measurement Management Software: Configuration Management, Report Printing, Data Logging

EX48

EX(L)24

Full Customization Services [Please Consult Us]

Custom Solution Lineup >

■ Flexible measurement pairing & channel layout ■ Cost-efficient and user-friendly structural design ■ Parameter adjustments (custom power input, scaling voltages, specialized communication specs)
■ Available from single-unit runs ■ Calibration tailored to assembly units ■ Inspection certifications and traceability charts can be provided
